Laboratory Furniture
|
|
The rapid change in science and its methodologies are exciting, invigorating challenges
for architects. We are fascinated by the multi-layered aspects of contemporary human
inquiry. We become part of the commitment to make places that support and enable
scientific advancement and learning to improve the human condition. We strive for
our creative process to result in a place of creative discovery.
Designers who work on successful buildings for science approach this building type
from several points of view. As architects, we believe beautiful and humanistic
surroundings inspire creativity and intellectual achievement. As laboratory planners,
we strive for ideas that define new and innovative ways for people to work collaboratively,
efficiently, and safely in a highly technical environment. As campus planners,
we are thoughtful in how we place a new building on a campus because we respect
the character of its past and its future.
|
|

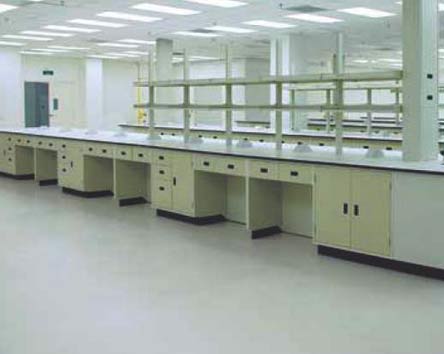

Laboratory Furniture
|
|

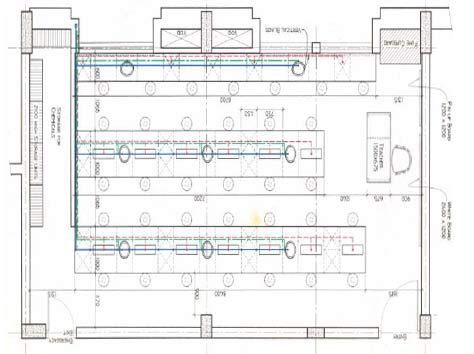

Laboratory Planning and Design
Laboratory construction, whether new, expansion or a renovation project is not simply
to buy a reasonable equipment, but also comprehensive consideration of the overall
planning of laboratory, rational layout and graphic design as well as electricity,
water, air, ventilation, air purification, safety, environmental protection, infrastructure
and basic conditions. Therefore, advanced scientific instruments, superior and sound
lab enhance the level of modern technology, a prerequisite for the growth of an
Institution.
Planning is divided into six areas: graphic design systems, structure and function
of a single design system for the drainage design systems, electronic control systems,
special gas distribution system, harmful gases such as six-output system.
|
|
Laboratory Furniture
|
|
The High Cost of Research
Buildings for science today are more sophisticated than yesterday's utilitarian
and functional 'research laboratories.' This is prompted by several trends:
|
|
1.
2. 3. 4.
5.
|
Scientific investigation has produced remarkable advances in all areas of science
and has resulted in increased funding.
New instruments, utilities, chemicals, and gases require specialized environments
and infrastructure.
There is an expanding need for shared core facilities such as analytical instrumentation.
Research programs have become multi disciplinary to benefit from the combined knowledge
of a broad range of specialists.
A consequence of these trends is high cost. Science labs are a major financial commitment
and an Institutions need to realize a return on investment, towards the community.
|
|
Laboratory Furniture
|
|
Laboratories Never at Rest
Why do science buildings need to accommodate change? If the average duration of
its research programs is three years, it is conceivable that up to 30 percent of
the building can be undergoing some level of intervention at any time. Intervention
may be required due to changes in research funding, changes in technology, recruiting,
promotions, mergers, acquisitions, legislation, etc. A particular basic science
research facility completed within the past two years has experienced changes to
29 percent of the net square feet during construction (before it opened its doors).
one.
Generally, there are three levels of intervention in terms of the cost of the changes:
|
|
1.
2.
3.
|
Cosmetic changes within existing rooms (such as repainting, new carpeting); upgrades
within existing rooms (such as new utilities, lighting, ceilings, carpeting).
Renovation where walls are relocated (all trades are affected).
In addition to construction costs related to the intervention, other costs may be
incurred for things such as 'down time' when the space is not in use, relocation,
assuring ongoing operations in adjacent areas and code upgrades.
|
|
|
A building designed with flexibility to accommodate change will minimize intervention
costs but it will also incur higher first costs.
|
|
Laboratory Furniture
|
|
...A key objective is to incorporate maximum amount of flexibility within budget
constraints and in the context of other priorities. Depending on the nature of the
project, it has been our experience that the following menu of choices can provide
cost effective results:
|
|
1.
2.
3.
4.
5.
6.
7.
8.
9.
|
Select a building layout that accommodates reassignment of space.
Consolidate uses that require special needs to the infrastructure.
Broaden application of design criteria to highest appropriate use.
Selectively build-in a 'robust' infrastructure.
Provide a mechanical distribution that accommodates change.
Provide a modular distribution of utilities with valves to isolate zones.
Provide repetitive modular design.
Select a cost-effective casework system.
Consider use of interstitial space.
|
|
The emphasis on interdisciplinary research has prompted social environments to be
an integral part of a science labs. Creative ideas come from discussions that can
occur spontaneously during a casual encounter.
In academic settings, communication amongst and between faculty, students, staff
and administration is essential to the education and mentoring process. In corporate
settings, communication between researchers, administration, and marketing is essential
to staying in business.
|
|
Laboratory Furniture
|
|

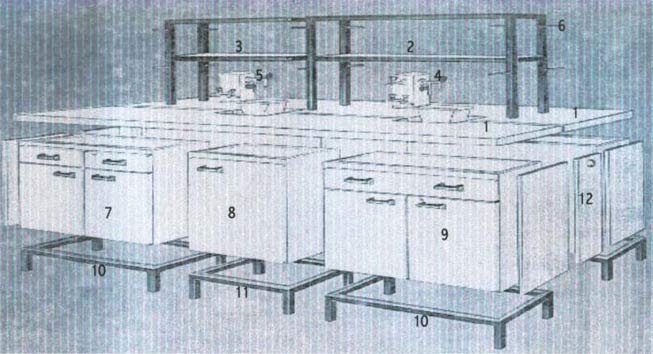

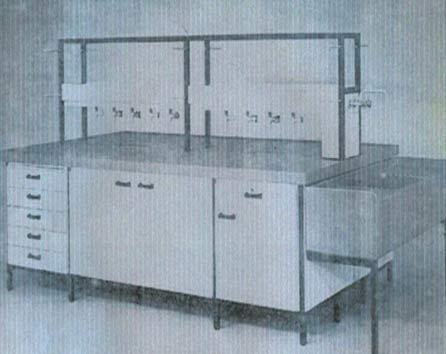

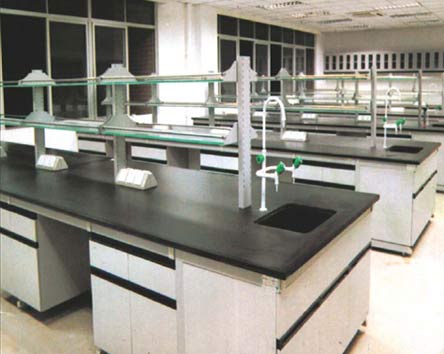

1. 2 Bench tops Laminate / Corian / Epoxy Coated Stackable reagent rack
2. 1 Basic section
3. 1 Add-on section
4. 1 Energy supply block
5. 1 Energy supply block
6. 12 Support bars
7. 2 Floor cupboards
8. 2 Floor Cupboards
9. 2 Floor Cupboards
10. 4 Tubular steel bases
11. 2 Tubular steel bases
12. 2 Double workbench panels with removable center section
|
|
Laboratory Furniture
|
|

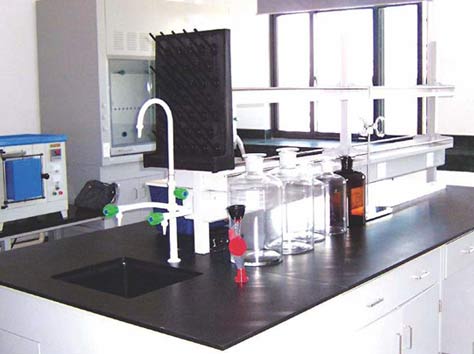

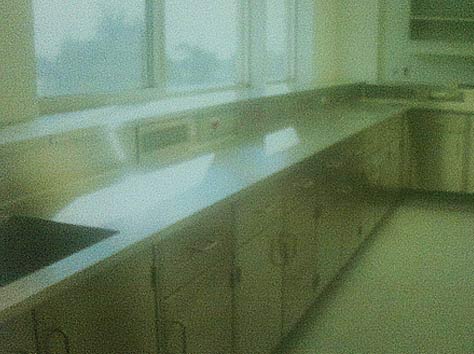

Worksurfaces

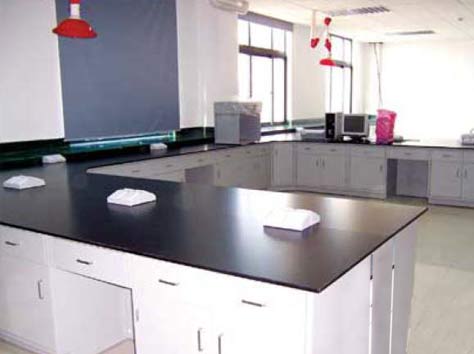

The SALWANS lab tops worksurface is a monolithic, modified epoxy resin product.
Our tops go through a special two-stage curing process. This method of curing assures
complete chemical reaction throughout the material, producing a uniform worksurface
of the highest quality.
The non-flammability, non-absorbency, superior chemical resistance and extreme durability
characteristics of our lab tops epoxy resin make it the material of choice for laboratory
and school countertops, tabletops, sinks and fumehood bases.
Our Laboratory tops offer epoxy resin / Laminate / Granite / Toughened glass / Corian
/ Fire resistant laminates / Fiber glass and polyvinyl chloride countertops to choose
from.
Almost any laboratory, school or production facility's countertops can be configured
using the components found in each of our styles. This allows numerous safety, function
and style options to be incorporated into worksurface designs to enhance the work
enviornment.
Supporting panel : High density, flat pressed particle board of wood bonding V20,
urea formaldehyde resin binding agent, 18 mm thick, bulk density 730 kg/m3, resistance
to bending and thickness swelling.
|
|
Laboratory Furniture
|
|
...The underside of the supporting panels is insulated against moisture. The working
surface is covered with unglazed red acid tiles laid in epoxide acid-resisting cement.
All edges provided with beaded edging.
The acid tiles meet quantity standards for
|
|
1.
2.
3.
4.
5.
6.
7.
8.
|
Rough and finished thicknesses
Water absorption
Bending strength
Resistance to temperature variations
Acid and alkali resistance
Fastness to light
Plastic table tops
Polypropylene (PP)
|
|
Supporting panel : High density, flat pressed particle board of wood bonding V 20,
unea formaldehyde resin binding agent, 18 mm thick, bulk density 730 kg/m3, resistance
to bending thickness swelling.
Three Materials, Block Board / Laminate, Epoxy Coated / Stone
Five Types of Base
Three Energy Supply Systems
|
|
Laboratory Furniture

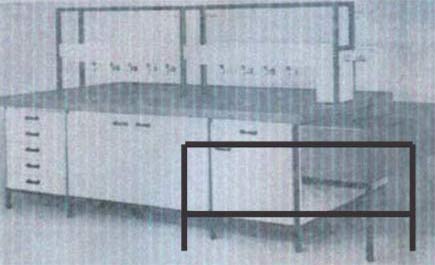

Base made in 19 mm thick block board with Acid Resistant / Fire Retardant Laminate.
|
|
Tubular steel supporting frame self-supporting made in 30 mm thick, 14 gauge, stainless
steel pipe with adjusters.
|
|
Laboratory Furniture

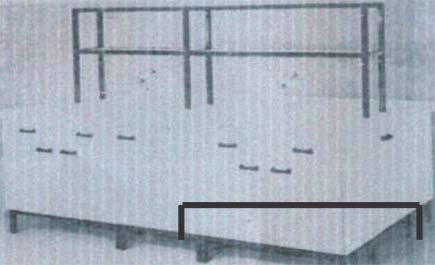

Tubular steel supporting frame self-supporting made in 30 mm thick, 16 gauge, stainless
steel pipe with adjusters.
|
|

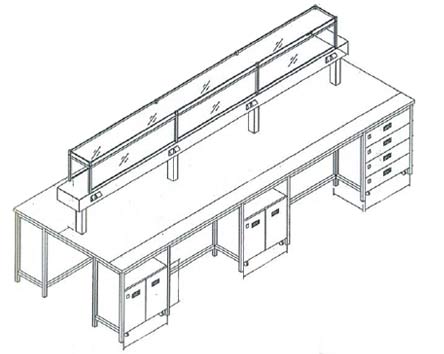

The Space Lab Kit-of-parts

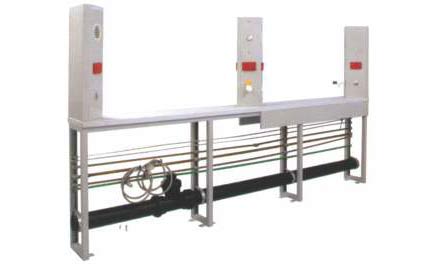

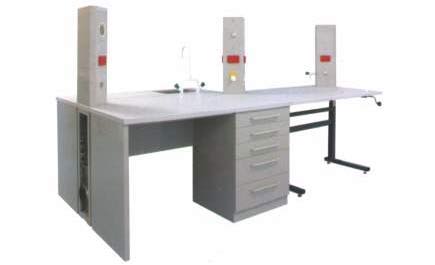

Laboratory system furniture: (a) fixed service spine and bollards
|
|
Laboratory Furniture
The Space Lab Kit-of-parts

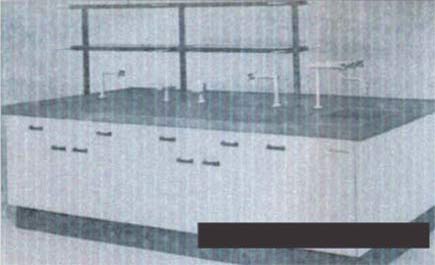

Laboratory system furniture: (b) add Movable benches as required
|
|
The Space Lab Kit-of-parts

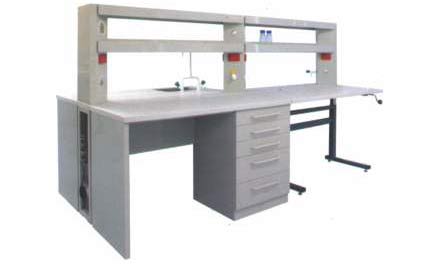

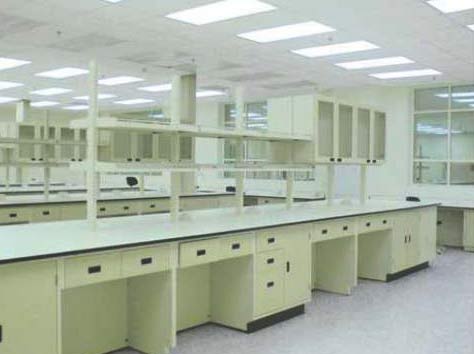

Laboratory system furniture: (c) add reagent shelves as required
|
|
Laboratory Furniture
|
|
Details of Construction and Finish of Materials
Valves and Fittings
Valves and fittings made of brass, sandblasted, epoxy coated.
The quality and adhesion of the coating is checked by the grid cut and cupping test.
Column fittings and threaded connections are made in one piece with a covered sealing
washer beneath the foot of the column to provide absolute tightness where fittings
pass through table tops.
Water valves with tubing connector for 10m i.e. laboratory tubing, hose nozzles
as per BIS standards.
Handles of cocks and valves marked in colors according to BIS standards.
Hardware
Hinges : Concealed all steel furniture hinges with automatic closure, opening angle
approx. 100°, dimensionally adjustable.
Guideways for sliding glass doors:
Aluminum section : bright anodized with ball bearing runners.
Door handles : Polypropylene strap shaped handles physiologically easy to hold,
color black, off white.
|
|
Laboratory Furniture
|
|
Locks : Cylinder locks in plastic casings with 2 keys. Framework connections : M6
socket-head screws and special threaded bushes accessible from one side, welded
securely into steel tubing.

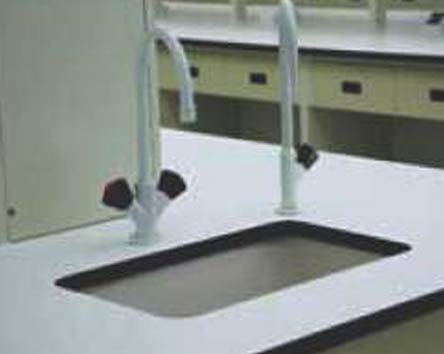

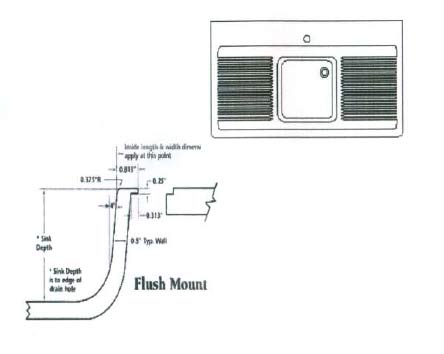

Laboratory Sinks
Stainless Steel : 18/10 nickel chrome steel, rustproof.
Stoneware : Coarse stoneware material table resistant to all acids, alkalis and
solvents (with the exception of hydrofluoric acid and not caustic alkaline media)..
Resistance to thermal shock up to 140° C.
Non inflammable (Material of class A 1).
Upper surface light and color fast, easy to clean and decontaminate..
Water absorption of the body 6-7.5 by weight. The glazing applied to the body provides
an absolutely watertight surface..
Polypropylene : For resistance to chemicals..
Rear Walls– in plastic furniture, of hardboard surfaced on both sides with
plastic 4mm thick. In steel furniture of electrolytically galvanized steel sheet,
epoxy coated surfaces are recommended.
|
|
Laboratory Furniture
|
|
Drawers
Drawers through of 1 mm thick sheet steel with guide rail. Drawer guide: Tandem
drawer guideway of steel profile with plastic carriage. Carrying force : 25 kg dynamically
(Strain in state of movement with drawn out drawer element).
1. Optimum running qualities by using a carriage with bomb shaped rollers.
2.The carriage latches captively in the body porfile.
3.No tilting of the drawer of the drawer element due to leteral supporting
rollers, also in case of extremely wide drawers.
4 Adjustment of sides and height possible.
Front in plastic underbench cupboards abutting of 19mm thick board coated on all
sides with plastic in steel underbench cupboards abutting, 19mm thick sandwich construction,
anti-drumming.

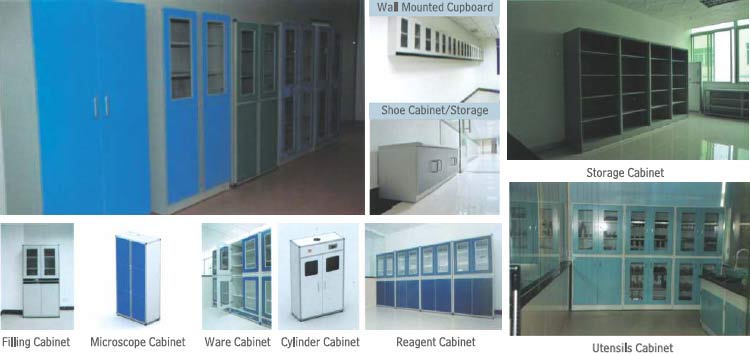

Particle Boards for Cabinets
Plastic surfaced, flat pressed particle board of wood with synthetic resin binder,
density 730 kg/m3.
Surfaced on both sides with melamine plastic sheeting directly applied and hot pressed,
edging strip cemented with hot-melt adhesive.
|
|
Laboratory Furniture
|
|
Largely intensive to moisture, surfaces light and color fast, easy to clean and
readily decontaminated, color grey-white, bending strength to resistance to cracking,
dimensional stability, water vapour test, fastness to light insensitivity to staining
and resistance to abrasion.
Steel Sheeting
Thin sheet, electrolytically galvanized.
Surface de-greased, phosphated and powder coated with epoxy resin 70 μm (100 μm
for fume chambers) melted on at 210 °C, light and color fast, easy to clean and
adhesion of the coating is checked by the grid cut test and by the cupping test.
19mm sandwich construction, anti-drumming doors.
Steel Tubing
Welded square tubing 30/30/2 mm and 80/30/2 mm.
The surface de-greased, phosphated and electrolytically powder coated with apporx.
70 μm epoxy resin, melted on at 210 °C.
The quality and adhesion of the coating is checked by the grid cut test and by the
cupping test.
|
|
Laboratory Furniture
|
|

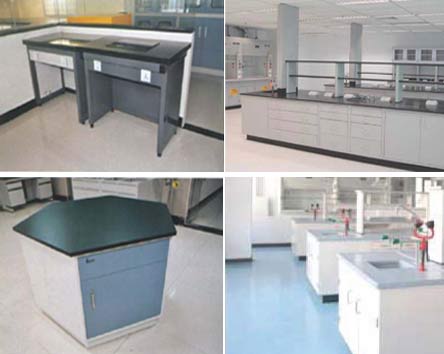

Classic Balance Tables
Our lab tops (epoxy resin/Granite/Corian/Glass/ Laminate) balance table provide
an extremely stable worksurface for highly calibrated equipment.
Balance Table
Our balance tables provide superior stability for highly calibrated equipment. The
top and legs are solid 19 mm thick moulded epoxy resin / Prelaminated praticle board
/ Laminate finish. A galvanized steel lateral support beam adds strength and rigidity.
Newly designed rubberized vibration reduction pads are now included to suppress
floor vibrations and increase instrument accuracy and consistency.
Granite / Epoxy / Laminate Tops
Epoxy (epoxy resin instrument support and isolation pads) granite & laminate tops
are also available for installation on the benchtop. These 19 mm thick moulded countertop
sections perform the same function as balance table, but at countertop level with
easy access to adjoining worksurfaces and utilities. Custom-made, full-size shock
reduction pads are provided and manufactured as per site conditions.
|
|
Laboratory Furniture
|
|
Drain Tops
Our Drain top is a specially designed top section featuring a unique raised rim
on all four sides for control of spilled liquids. Outside edges and corners of the
drain top are radiused for user comfort and safety. Flexibly designed, drain tops
can be used at the end of islands and peninsulas or in a wall run section. The 30"
(762mm) long X 18" (457mm) wide sink area accommodates a large dropln sink.
The "ribbed" sections to the left and right of the sink area facilitates drainage
to the sink from an elevated surface. Drainboard sections of our drain top are designed
with rounded edges and gently slope toward the sink from all directions to facilitate
complete drainage and easy, through cleaning.
Dropln Sinks
Our laboratory tops offer the greatest number of epoxy resin topmounted Dropln sink
sizes. All exterior edges, corners and interior corners are rounded for the user's
protection. The clean lines and flush mounting of our Dropin sinks give a modern
appearance to both new and remodeled laboratories.
Flush mounted sinks eliminate the exposed area under the sink cutout where residual
chemicals gather and bacteria commonly form due to incomplete drainage and cleaning
oversights. This can result in uncontrolled chemicals mixing in the sink area. Our
sinks significantly decrease this hazard because of moisture are visible and curved
with no sharp hard-to-clean corners.
|
|
Laboratory Furniture
|
|
School/College Labs
General
Master switch - Near to a door in each laboratory, there must be a master switch
for the electricity and stopcocks for the gas and water so that supplies can be
cut off.
Design of sockets and taps - All Sockets and taps should be of a design and quality
which minimizes the effect of students abuse.
Devices on gas and water taps - Installation must be very carefully supervised to
ensure the contractors respect the devices on gas and water taps intended to prevent
them from rotating.
Gas
Gas Mains - Where possible, mains gas should be installed. If this is not available
then gas should be piped from cylinders placed outside the laboratory.
Gas outlet - The gas outlet chosen should be double one controlled by drop levers
or a spring loaded knob. It is important that it cannot be opened with an accidental
knock and that is possible to see from some distance when the gas is off.
|
|
Laboratory Furniture
|
|
Waste and Drainage
Water outlets - Water outlets should be at least 600mm above the bottom of the sink
so that all vessel can be fitted.
Fittings - At the same time the outlet must be close enough to the sink so that
water goes into the sink and not on to the bench.
Sturdy - Fittings must be sturdy and have no joints about which nozzles and necks
can be rotated.
No Joints Pillar Tap - The most trouble free type is the pillar tap. These are sturdy
and need not have joints. The fitting must have a square lug or fixing plate so
that the whole fitting cannot be rotated.
Traps - Sinks must be fitted with traps, which are easy to open for cleaning. Standard
plastic drain fittings are adequate for school laboratory use.
|
|
Laboratory Furniture
|
|
Fume Cupboards
Centrifugal fan near the exit - Fume cupboards should be evacuated by a centrifugal
fan near the exit from the duct as it is quieter and more efficient that an axial
one.
Its position - Fume cupboards should not be placed in the wall between a laboratory
and preparation room.
Must in every Lab - There should be access to a fume cupboard which can be used
for demonstration.
Relationship Within the Department
Centralized preparation room and storage - It is more flexible and less prescriptive
to provide a centralized preparation room and stroage.
Location (Near the centre of the building) - Clearly, if this is to have easy access
to all the laboratories, then it will need to be somewhere near the centre of the
building.
Natural light (a necessity) - Immediately we can see the problem of getting natural
light to the preparation room. People working in a space for a long time are happier
if they can see the outside.
|
|
Laboratory Furniture
|
|
Circulation space Circulation space provision for coats and bags - Circulation space
must be carefully considered at the same time as the provision for coats and bags.
Some of the circulation space may double as the display area.
How Big is a Laboratory
Needs will change (A large Laboratory advisable) - However, needs will change several
times during the expected life of a life of a laboratory and experience shows that
small laboratories are often used to accommodate the larger classes of younger pupils.
It is therefore probably better to build all laboratories the same size. A large
laboratory can accommodate a small class while the reverse is not true.
LABORATORY SIZE (Not separate form class) - 80 sq. m. for laboratory is ideal and
this should be regarded as a minimum.
LABORATORY SHAPE - Laboratory size cannot be considered separately from class size.
A useful rule of thumb allows 2 sq. m. of free floor area per students at age 11,
rising to 3 sq. m. at 16+.
|
|
Laboratory Furniture
|
|

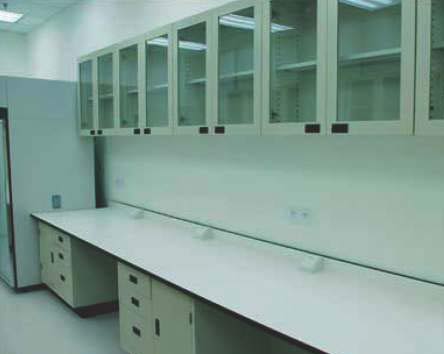

Laboratory Furniture
This is one area that requires specialized construction expertise. SALWANS is the
recognized leader in this field with ongoing development of the SALWANS Laboratory
Furniture systems.
A simple alan-Key bench frame system using our standard components, reduces construction
time, requires no welding and creates no handling or transport difficulties.
A range of our systems enables the fixing of all service pipe work directly to the
bench frame - out of sight.
Due to bolted construction, if layout changes are required at later date, the system
can be dismantled and relocated with no damage to materials or finish, impossible
with a welded construction.
|
|
Laboratory Furniture
|
|
|
1 | 2 |
3 | 4
| 5 | 6 |
7 | 8
| 9 | 10 |
11 | 12
| 13 | 14 |
15 | 16
| 17 | 18 |
19 | 20
| 21 | 22 |
23
|
|
|
